What *is* the 12 hour energy impact?

Clearly not percentage, but the units don't seem to be specified...

The "original" value was in a power measurement unit, however, the value is calculated aggregating the power usage statistics from a number of very different power measurements ("CPU" vs. "storage" vs. "WiFi"). We do try and bring those different sources into line with each other (so, for example, "100 CPU" uses the same power as "100 WiFi"), however, that's an inherently tricky process and those issues are the compounded by the fact that all of these details vary by machine model as well as external conditions.

All of that variance is why we chose to document it as abstract value, not a specific measurement unit. Documenting as a specific unit would only encourage comparisons with other values, something we already know isn't going to work all that well.

The real problem we have right now is that, with macOS 15.5, our suite gets a huge amount of "energy impact" points, even though diving into it, it doesn't seem to do that. The most telling example I have of that is: I ran each of our daemons from Terminal, unplugged my laptop, closed the lid, and let it stay there for 8 or 9 hours. When I woke it back up, Activity Monitor claimed it had 2,000 units or so, but after opening all of the disclosure triangles, none of the processes (including the hand-started daemons) used anything close to that.

What do your daemons actually "do" and, notably, do they prevent sleep? That's one of the cases which can heavily distort the calculation so the impact of being awake is fairly high, even if you're process isn't actually "doing" anything. Related to that point:

Also, the battery had almost no drain on it.

...Activity Monitor is primarily focused on relative behavior in "real time". I don't know that it accounts all that well for things like sleep and I'm also not sure that 2000 would actually add up to THAT much drain over that time period.

We're getting complaints about this, so I'm trying to figure out what, exactly is going on, but I never looked at the power stuff internally so I don't know how to read the diagnostic files.

So, the first thing I would actually focus on is auditing your process behavior under normal conditions, basically looking for easy issues/fixes. One specific thing I would look at is the thread wakeup rate, particularly how messaging between threads occurs and/or work is divided up. These sort of case are worth looking for because they're often pure upside- that is they both reduce your energy impact AND improve performance. You can see two concrete examples of that in the links above.

__
Kevin Elliott
DTS Engineer, CoreOS/Hardware

The extension gets calls for sleep and wake, and log them. Nothing else happens in the interim, other than (sometimes) some already-existing flows.

The other daemons opt into IOKit's power notifications, and when sleep happens, they set it up so any timer-invoked actions just return immediately.

The GUI app doesn't do anything special for sleep or wakeup, mainly because I wasn't sure what I should do. 😄

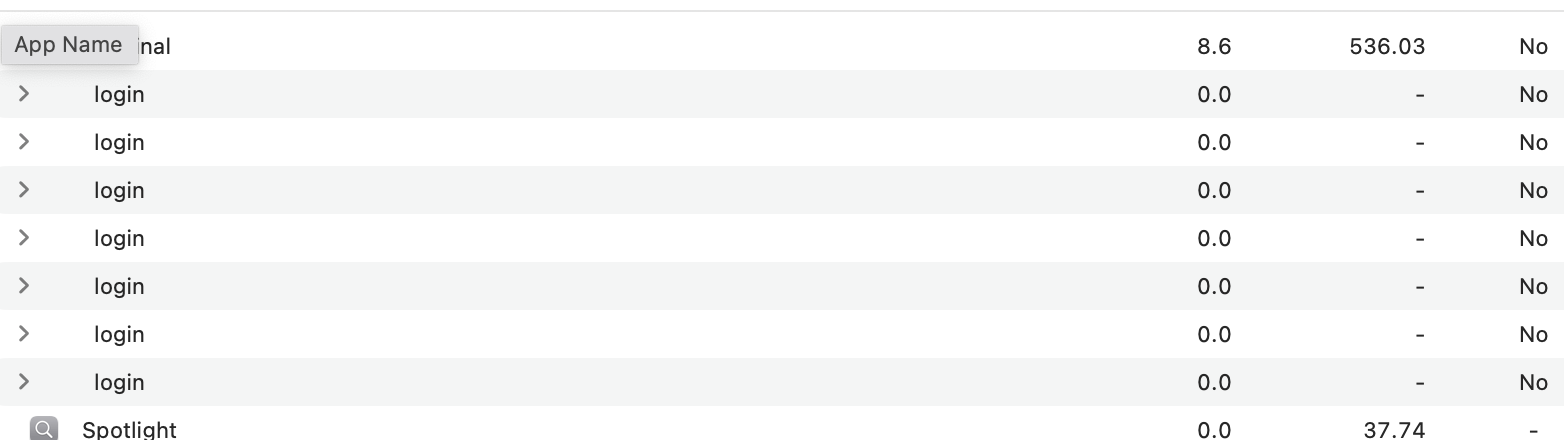

Here is an example of what confuses me: the total is 500 units, but each of the windows has 0.0 units.

The extension gets calls for sleep and wake, and log them. Nothing else happens in the interim, other than (sometimes) some already-existing flows.

One thing to be aware of here is that the assignment of "blame" for things like sleep/wake activity is really messy. The basic cost of being "awake" is fairly high, so we need to track and assign "responsibility" to client that wake the system and/or generate activity while it's awake. However, architecturally it can be difficult to specifically identify what caused any given wake and, more importantly, the bigger concern* is generally about the OTHER work that occurred, not the direct cause of the wake. All of that means that I suspect that simply registering for these notifications will mean you carry some of the "blame", even if your activity is minimal.

*If we assumed that all wakes were essential and unavoidable **, then the primary optimization target is whatever "other" work is occurring, not the process that triggered the wake.

**I'm sure that this isn't the case on many systems, however, removing unnecessary wakes is basically a separate optimization.

The other daemons opt into IOKit's power notifications, and when sleep happens, they set it up so any timer-invoked actions just return immediately.

One thing I would look closely is that you consolidate as much activity as possible to a single thread. Depending on the API your using, that means either tying everything to the main thread runloop or using a single serial GCD queue for "everything". The risk here is that your process is waking up, doing a TINY amount of work on a bunch of thread, and then immediately going idle again. That's a case the system is specifically looking for and will penalize.

Note that this recommendation applies pretty broadly, particularly for daemons built around GCD. One of the issue dispatch creates (particularly using the global queues) is that it can make it feel very "natural" to casually send off very small amounts of work without ever thinking about thread behavior, which can be pretty bad for the overall system. Let me know if this is your situation and I can go into more detail.

The GUI app doesn't do anything special for sleep or wakeup, mainly because I wasn't sure what I should do. 😄

My main note here is to check your assumptions. This isn't even about sleep as such, it's simply checking "what's happening in your app when nothing is happening". The answer should be "nothing", but it's pretty common for the answer to be "a bunch of unnecessary nonsense".

Here is an example of what confuses me: the total is 500 units, but each of the windows has 0.0 units.

That's not what's going on there. It's showing the process hierarchy and the Energy Impact is per process, not cumulative. Also, not that "0.0" really means "didn't use significant power", not "didn't use ANY power".

Using Terminal.app as a convenient example, I have it open with a few windows, one of which is running "top". What Activity Monitor shows is:

Terminal.app = ~10

-> This is the normal app management "cost".

  login = 0

-> login creates the environment the child shell operate in, but doesn't really "do" all that much.

    tcsh = 0

-> Similar to login, the sheet interprets command line input and defines the environment the tools it launches operate in, but doesn't actually "do" all that much when another command is actively running.

      top = ~100 -> ~150

-> This is basically polling the kernel for process state updates, so it's relatively "busy".

__
Kevin Elliott
DTS Engineer, CoreOS/Hardware

I don't remember if we ever met; if not I'm sad now. That was an incredibly useful and helpful amount of information, so while it's going to take me a while to digest, I wanted to point that out first.

I don't remember if we ever met; if not I'm sad now.

I'm sure we must have, but I'm not sure I remember either. Of course, I'm sure I was a lot less interesting back in the day.

That was an incredibly useful and helpful amount of information, so while it's going to take me a while to digest, I wanted to point that out first.

You're very welcome and please post again whenever you have questions!

__
Kevin Elliott
DTS Engineer, CoreOS/Hardware
