track PushNotification delivery

You will want to look at implementing a UNNotificationServiceExtension

Argun Tekant /  DTS Engineer / Core Technologies

Thanks for your response. We implemented the UNNotificationServiceExtension, but it's not working as expected. When the app is in the background and the device receives a notification in the Notification Center, we are not seeing any events passed to APNS. We only get events for "open" and "clicked" when the user taps on the notification banner. We want to know if it is technically feasible to send events back to APNS when the app is in the background and there is no user interaction ?

What do you mean by "sending events back to APNs"?

If you have implemented your service extension correctly and including the correct payload key "mutable-content": 1 the extension will run whenever you send a notification with visible content. In this extension you can then do what you need to do to inform your own server, or however it is you want to tally received notifications.

Hi,

Yes, we are using the "mutable-content": 1 in notification payload, please see below -

{ "aps": { "alert": { "title": "title", "subtitle": "subtitle", "body": "body" }, "category": "subway", "badge": 1, "sound": "default", ** "mutable-content": 1** }, "_mld": "47785028", "_did": "1d9ba0", "customData": { "message": "This is a regular notification message." } }

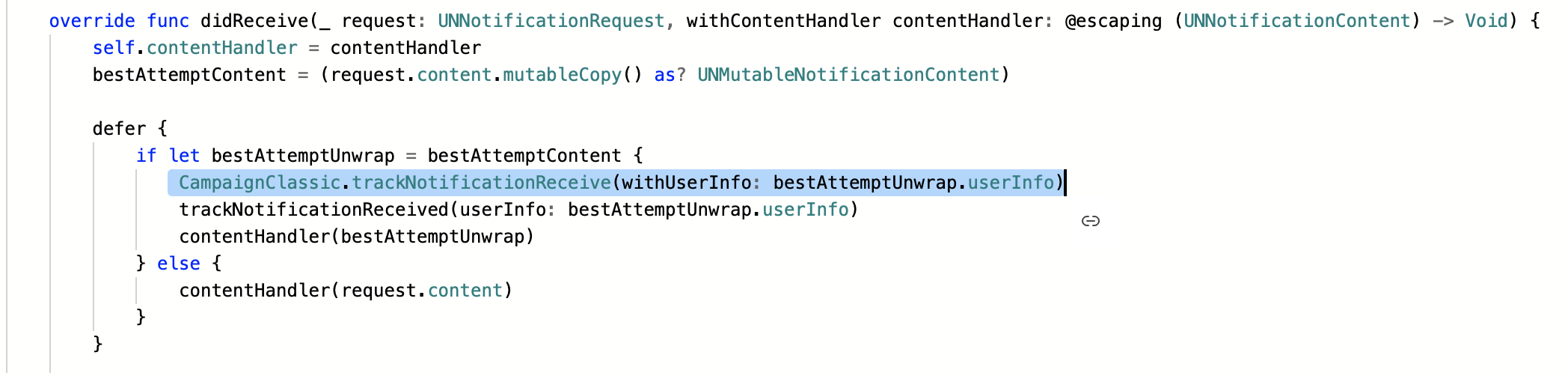

Also in UNNotificationService Extension we are passing the details to Adobe Campaign (as we are using Adobe as our Notification platform), please see the attachment

So, that seems all fine. What is it that is not working? You may need to debug your extension or consult with Adobe to find out why this is not working.

Use Case: • The app is running in the background and the device is locked. • A push notification is received. • Business Requirement: Even without user interaction (i.e., user does not tap the notification), the app should capture and send a specific event when the notification is delivered. • Current Behavior: • When the user taps on the notification, the app correctly captures and sends the event. • If the user does not interact with the notification, no event is sent, which is the problem.

A Notification Service Extension will run whether the app is running or not, or whether the device is locked or not - as long as you have the correct payload as you described above.

If the CampaignClassic.trackNotificationReceive is not working you need to debug your app and find out:

• is it properly configured so the extension is running
• is the payload correct so the extension is running
• is the extension crashing
• is the Adobe library (and anything else you might be using) you are importing to your extension putting it over the 24 MB total memory limit (which will cause the system to terminate your extension)
• is the CampaignClassic.trackNotificationReceive able to run in an extension and is it able to do it's thing properly. You need to consult with Adobe's support channels to find out if it is not working
• I see your defer{} block. If your expectation is it will be called under all circumstances, that is not correct. If the extension code is taking longer than 30 seconds, the system will first call serviceExtensionTimeWillExpire() function in your extension. If you don't call the contentHandler() immediately, your extension will be terminated, whether the defer{} block has been executed or not.
• If you receive serviceExtensionTimeWillExpire() and you are still processing the notification, or pending on CampaignClassic.trackNotificationReceive the notification will be terminated regardless

These are some of the possible things that could be going wrong with the extension that is failing to send the event. You need to debug this issue and find out why.

ok, thanks for the detailed suggestion
