I just made a simple AppKit app, but don't know how to remove borders of rows when they're swiped.
SwiftUI's list does not have this problem though.

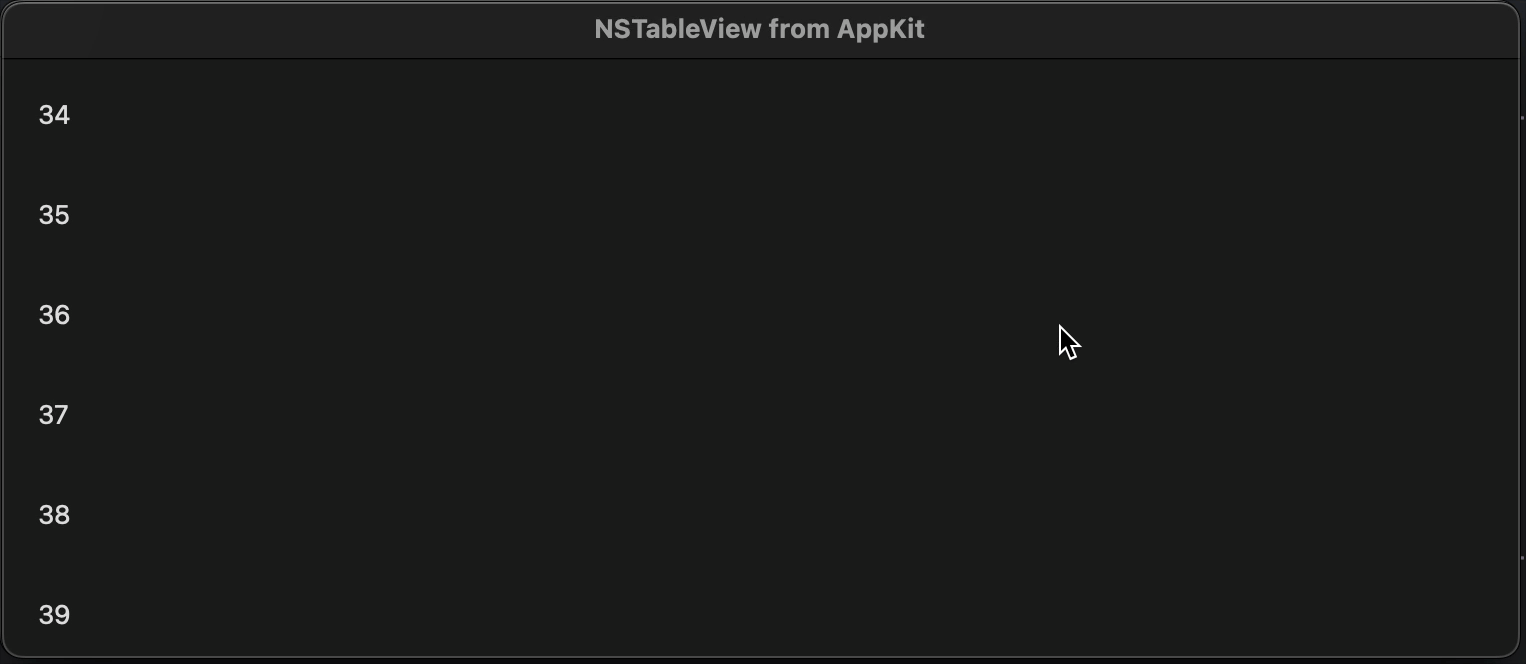

Attaching gif demo and code:
import SwiftUI
struct NSTableViewWrapper: NSViewRepresentable {
@State var data: [String]
class Coordinator: NSObject, NSTableViewDataSource, NSTableViewDelegate {
var parent: NSTableViewWrapper
weak var tableView: NSTableView?
init(parent: NSTableViewWrapper) {
self.parent = parent
}
func numberOfRows(in tableView: NSTableView) -> Int {
self.tableView = tableView
return parent.data.count
}
func tableView(_ tableView: NSTableView, viewFor tableColumn: NSTableColumn?, row: Int) -> NSView? {
let cell = tableView.makeView(withIdentifier: NSUserInterfaceItemIdentifier("Cell"), owner: nil) as? NSTextField
?? NSTextField(labelWithString: "")
cell.identifier = NSUserInterfaceItemIdentifier("Cell")
cell.stringValue = parent.data[row]
cell.isBordered = false
return cell
}
func tableView(_ tableView: NSTableView, rowActionsForRow row: Int, edge: NSTableView.RowActionEdge) -> [NSTableViewRowAction] {
guard edge == .trailing else { return [] }
let deleteAction = NSTableViewRowAction(style: .destructive, title: "Delete") { action, index in
self.deleteRow(at: index, in: tableView)
}
return [deleteAction]
}
private func deleteRow(at index: Int, in tableView: NSTableView) {
guard index < parent.data.count else { return }
NSAnimationContext.runAnimationGroup({ context in
context.duration = 0.3
tableView.removeRows(at: IndexSet(integer: index), withAnimation: .slideUp)
}, completionHandler: {
DispatchQueue.main.async {
self.parent.data.remove(at: index)
tableView.reloadData()
}
})
}
}
func makeCoordinator() -> Coordinator {
return Coordinator(parent: self)
}
func makeNSView(context: Context) -> NSScrollView {
let scrollView = NSScrollView()
let tableView = NSTableView()
let column = NSTableColumn(identifier: NSUserInterfaceItemIdentifier("Column"))
column.width = 200
tableView.addTableColumn(column)
tableView.delegate = context.coordinator
tableView.dataSource = context.coordinator
tableView.backgroundColor = .clear
tableView.headerView = nil
tableView.rowHeight = 50
tableView.style = .inset
scrollView.documentView = tableView
scrollView.hasVerticalScroller = true
scrollView.additionalSafeAreaInsets = .init(top: 0, left: 0, bottom: 6, right: 0)
return scrollView
}
func updateNSView(_ nsView: NSScrollView, context: Context) {
(nsView.documentView as? NSTableView)?.reloadData()
}
}
struct ContentView: View {
@State private var itemsString = Array(0..<40).map(\.description)
var body: some View {
NSTableViewWrapper(data: itemsString)
}
}
func createAppWindow() {
let window = NSWindow(
contentRect: .zero,
styleMask: [.titled],
backing: .buffered,
defer: false
)
window.title = "NSTableView from AppKit"
window.contentViewController = NSHostingController(rootView: ContentView())
window.setContentSize(NSSize(width: 759, height: 300))
window.center()
window.makeKeyAndOrderFront(nil)
}
class AppDelegate: NSObject, NSApplicationDelegate {
func applicationDidFinishLaunching(_ notification: Notification) {
createAppWindow()
}
}
let delegate = AppDelegate()
NSApplication.shared.delegate = delegate
NSApplication.shared.run()
What helped: adding another tableView method:
func tableView(_ tableView: NSTableView, rowViewForRow row: Int) -> NSTableRowView? {
let rowView = MyCustomRowView()
return rowView
}
class MyCustomRowView: NSTableRowView {
override func drawSeparator(in dirtyRect: NSRect) {}
}
